Ball Valves
3-Way
- High wear resistance
- Modified polyamide as a seal
- Ball bearing shaft
- Exceptionally compact
- Very short switching time

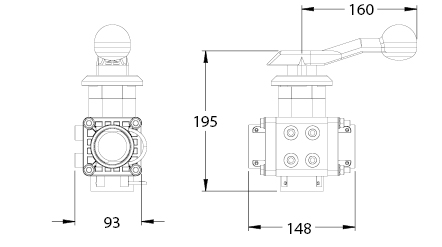

Dimensions Manual Ball Valve 3-Way
| Article no. | Description |
|---|---|
| 83163 | Ball Valve 3-Way, manual, ø39 mm |

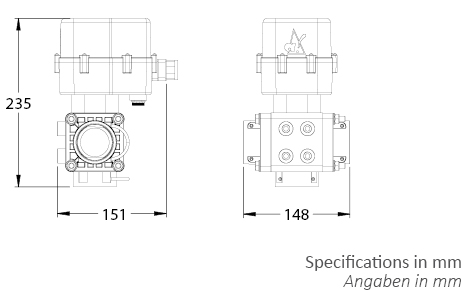

Dimensions Electric Ball Valve 3-Way
| Article no. | Description |
|---|---|
| 83160 | Ball Valve 3-Way, electric, ø39 mm, 2-Wire |
| 83173 | Ball Valve 3-Way, electric ø39 mm, 3-Wire |

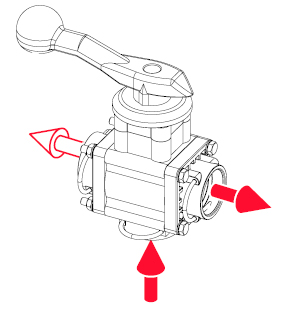

Diagram
Basic Parameters
Fittings
Drive
Parameters
| Nominal voltage | 12 V / DC ± 10% |
| Current input | 3,5 A at 20 bar |
| Switching time | 450 ms |
