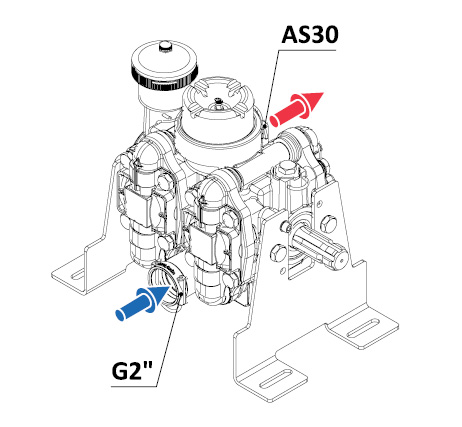

Piston-Diaphragm-Pumps
P260
- Linear steady state characteristics
- Integrated hydraulic accumulator
- Safe to run dry (liquid)
- Dry self-priming up to 2 meters depth, then self-priming up to 4 meters depth
- Liquid fertiliser-proof (UAN)

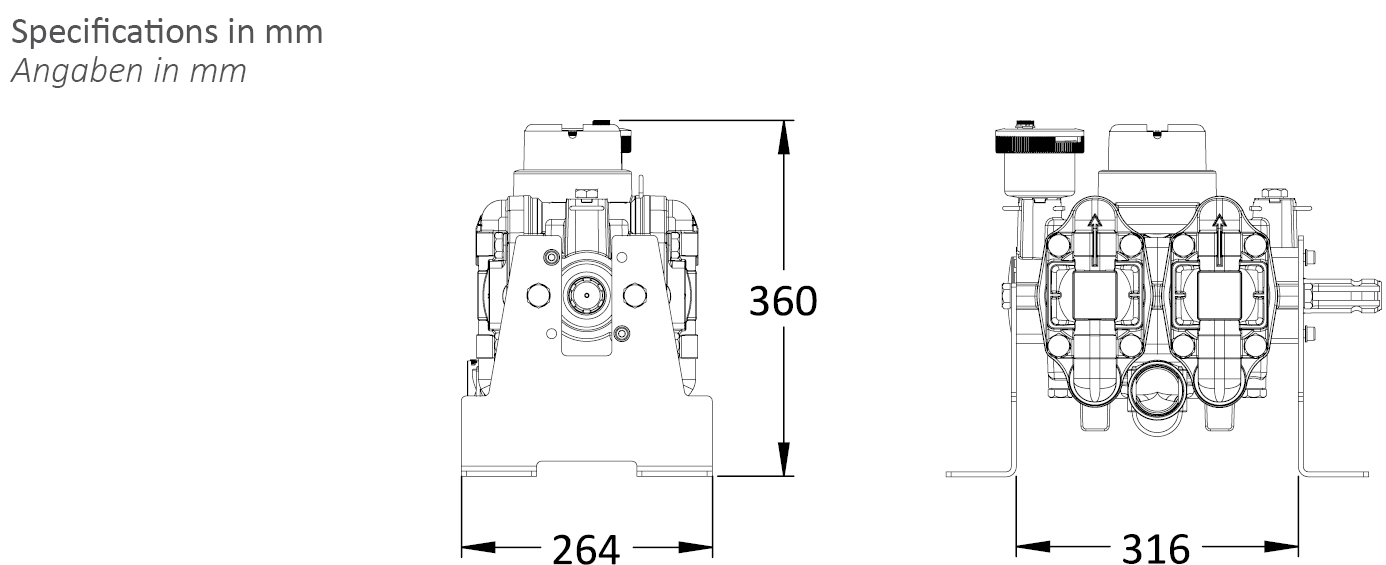

Dimensions
Options:
- Desmopan ® Diaphragms
- Hydraulic drive
- Through shaft

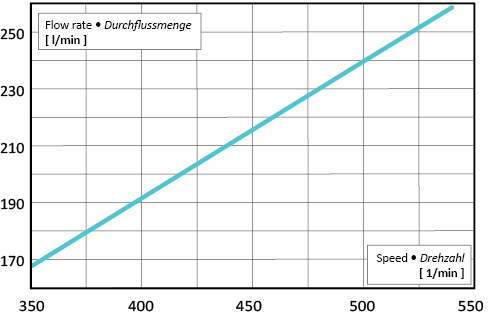

Diagram
Properties
| Capacity att 5 bar | 260 l/min |
|---|---|
| Article-Nr. | 82386* |
| Working diaphragms | 4 x NBR |
| Accumulator diaphragms | 1 x NBR |
| Inlet-ø Suction | G2" male; Ø 67 mm |
| Outlet-ø Pressure | AS30 |
| Weight* | 32 kg |
*Setup with bracket and pto protection, including oil filling
Flow Pattern
Basic parameters
| Nominal speed [rpm] | 540 |
| Permanent pressure [bar] | max. 15 |
| Speed range [rpm] | 450-600 |
| Spline shaft | DIN 9611/ISO 500 |
| Lubrication: | Oil bath |
| Materials | Cast aluminium, partially anodised, stainless steel, NBR seals, POMCast aluminium, partially anodised, stainless steel, NBR seals, POM |
Power consumption at 540 rpm, in kW
| 0 bar | 5 bar | 10 bar | 15 bar |
| 0,8 | 1,8 | 3,0 | 4,1 |
