Piston-Diaphragm-Pumps
Hydraulic drive P70-P380

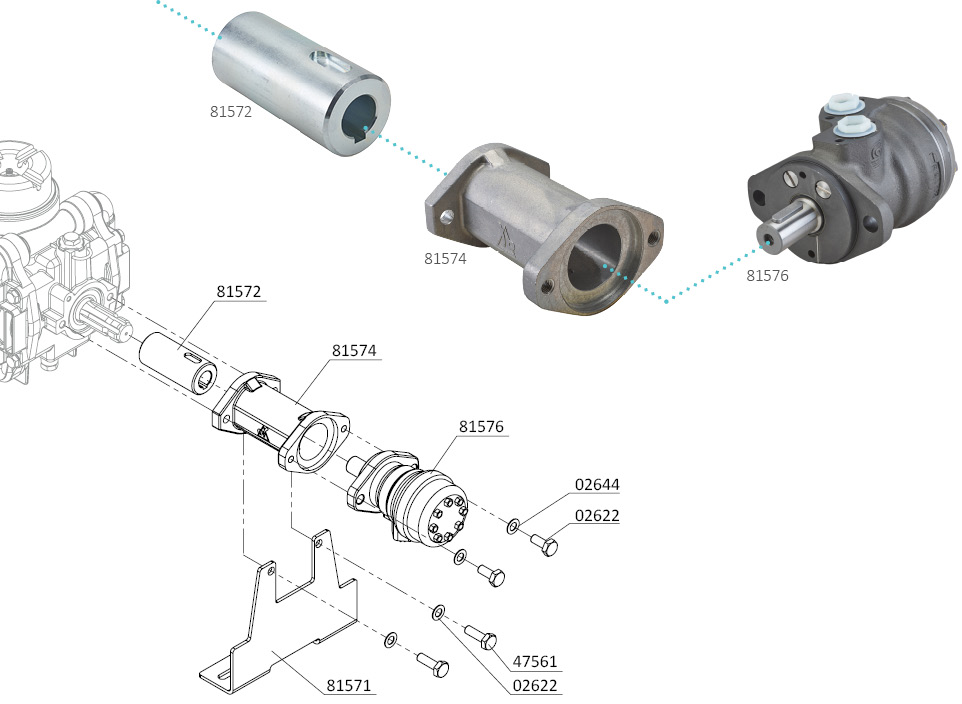

Drawing
Hydraulic drive P70-P350
| Article-Nr. | Type | Material |
| 02622 | Spring washer B 12 | Geomet coated |
| 02644 | Hexagon Nut M 12 x 30 mm | Geomet coated |
| 47561 | Hexagon nut M 12 x 40 mm | Geomet coated |
| 81571 | Bracket for pumps with hydraulic drive |
Steel, powdercoated |
| 81572 | Kupplungsstück für Hydromotoren P70 - P380; ø 25 mm | Steel, galvanized |
| 81574 | Mounting flansh for hydraulic motor P70 — P380 | Cast aluminium |
| 81576 | Hydraulic motor | Type: OMR 50 151-0710 |
