Pressure Regulator
Ball Regulator SBR500
- Very quick and precise ball positioning
- Permanent angle measurement
- Standard cabeling or CAN (optional)
- PWM Drive DC Motor
- Compact design
- Quick and flexible installation thanks to altek Quick-Fit System

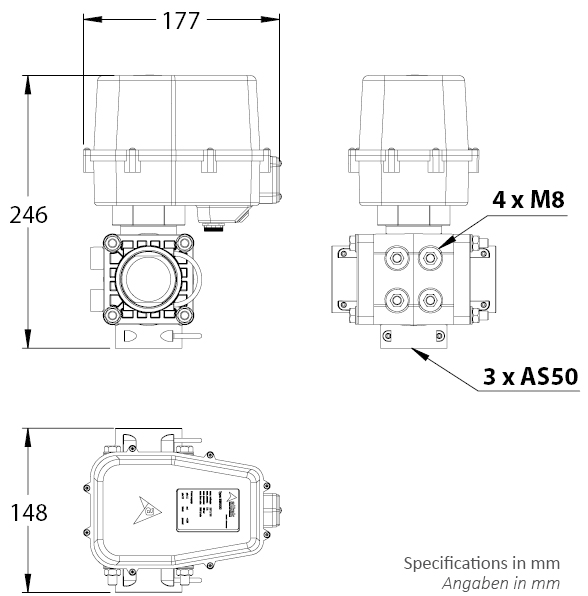

Dimensions
Metering Disc / Return Flow
- Linear characteristics (return flow vs. ball rotation)
- Robust precision gearing
Basic Parameters
| Nominal voltage | 12 V / DC ± 10% |
| Current input | max. 3 A |
| Switching time over 90° | 3,5 s |

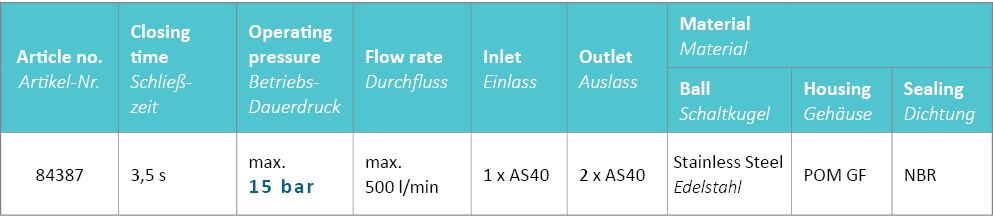

Parameters
Main Flow
| Article no. | Accessories |
| -- | -- |

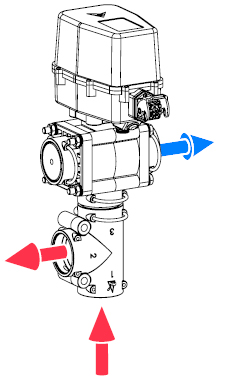

Bypass Flow
| Article no. | Accessories |
| 83637 | Female hose tail AS50 / AS50 |
| 82854 | Dummy plug AS50 |
| 83620 | T-piece AS50 with M8 inserts |

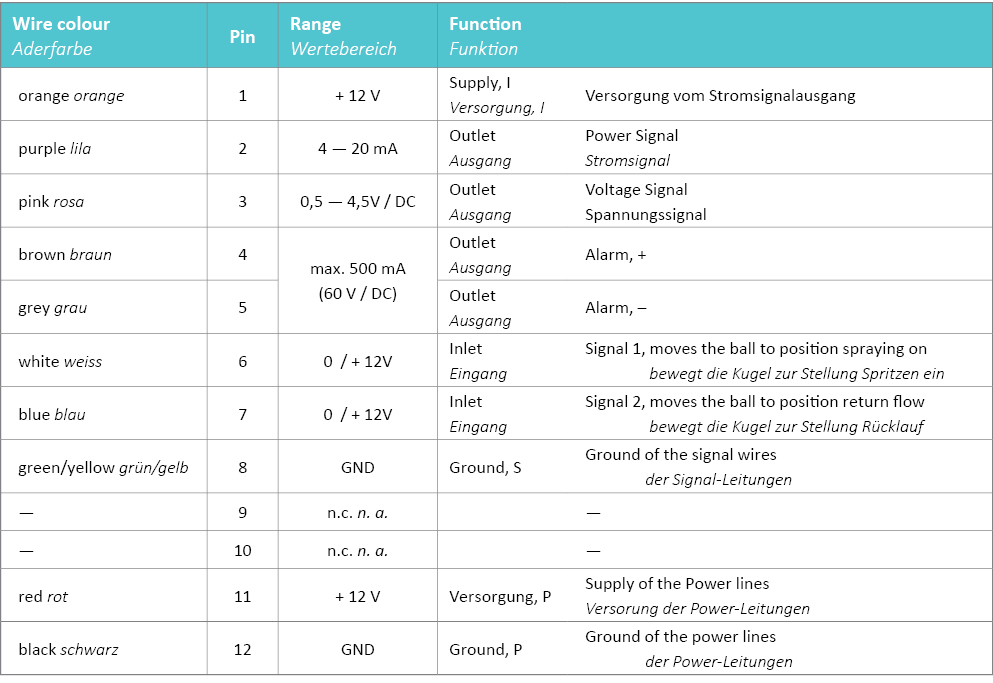

Connections

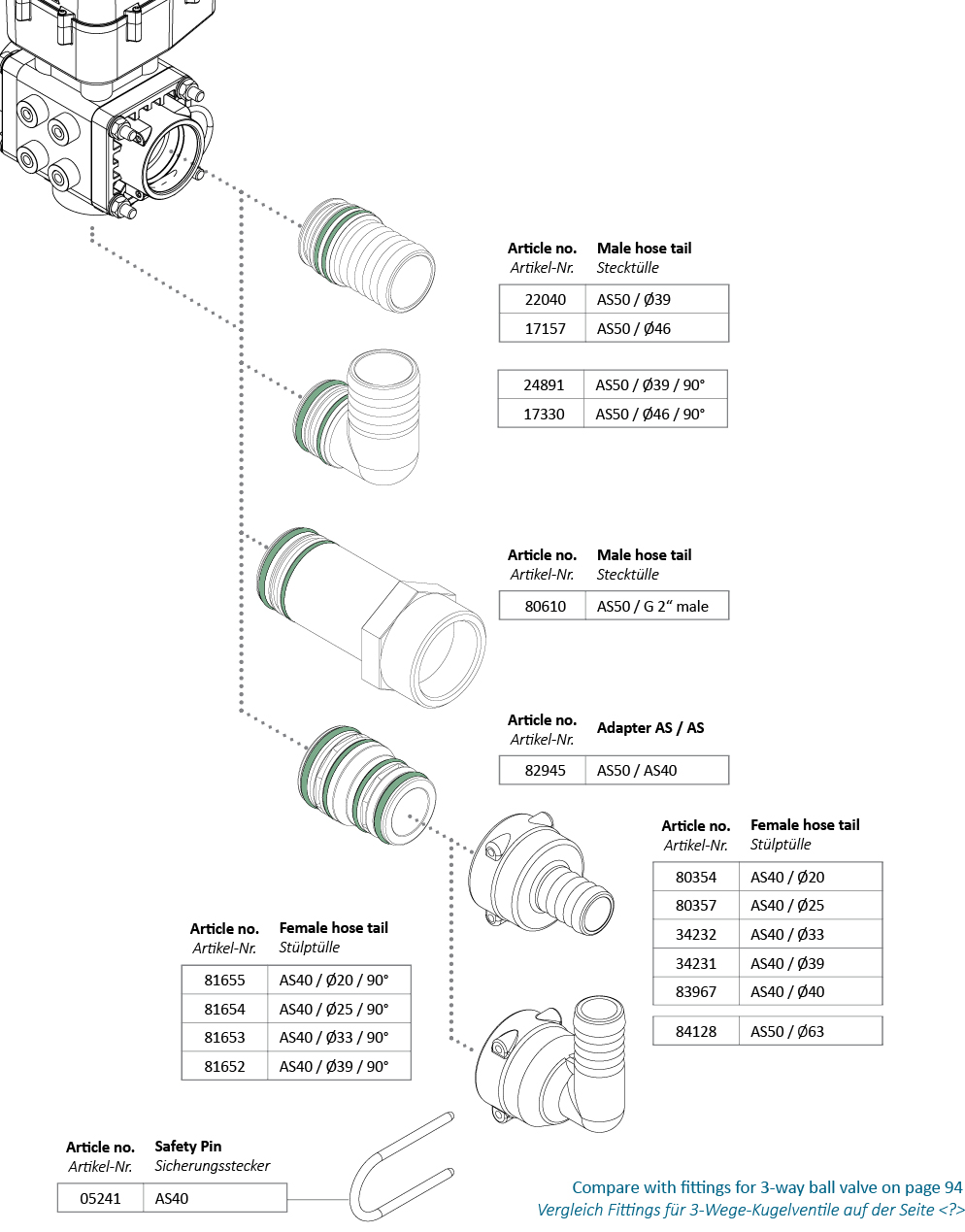

Fittings
AS50 for all connections
