Boom Section Valves

Modular-Fit

Properties

Maximum pressure 12 bar
Switching time 0,6 .. 0,8 s
Material POM GF, stainless steel, FPM- und NBR-seals
Drive manual
2-Wire
3-Wire (+) driven
3-Wire (–) driven

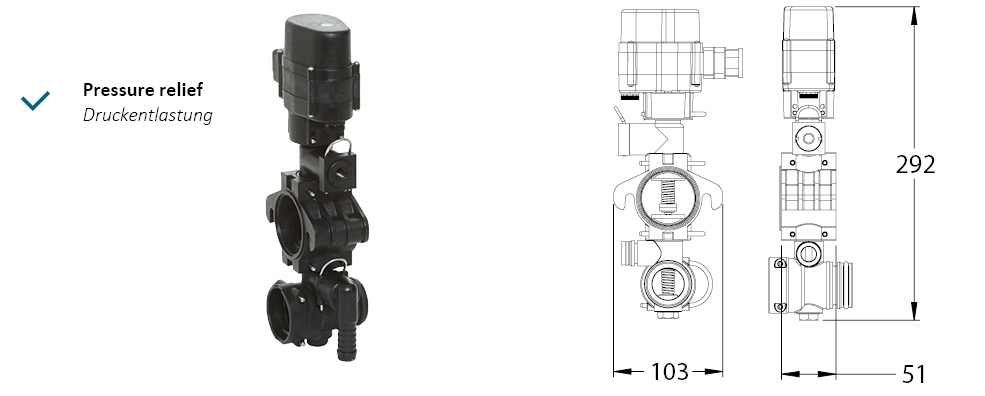

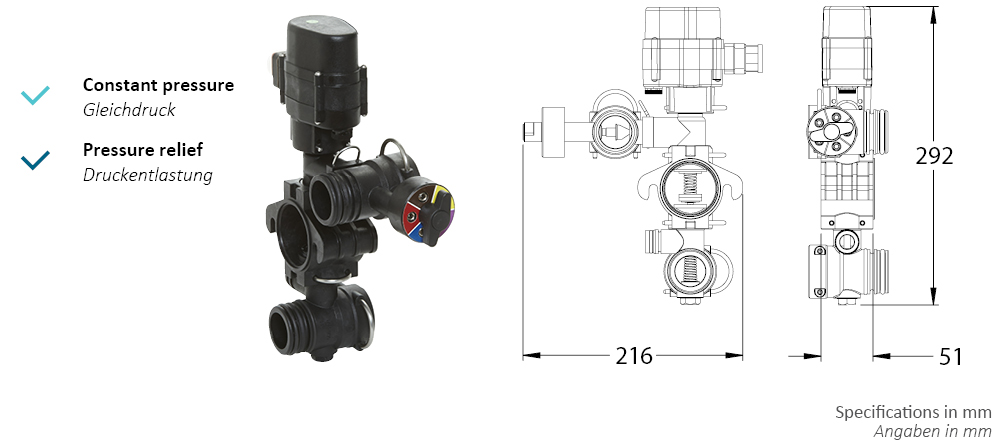

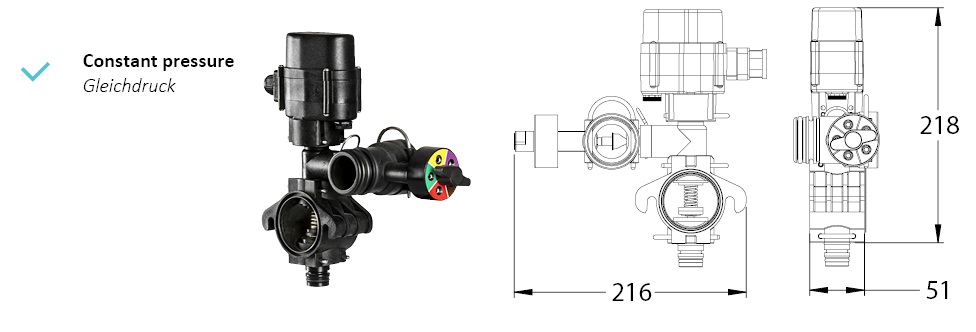

Dimensions

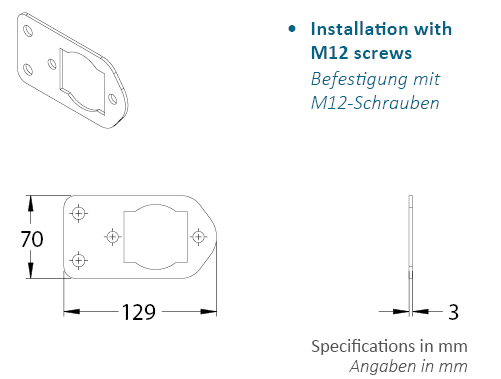

Brackets

Article-Nr. Type
80604 Bracket Modular-Fit Assembly; Stainless steel



Brackets

Article-Nr. Type
84507 Bracket Modular-Fit Assembly; Stainless steel
