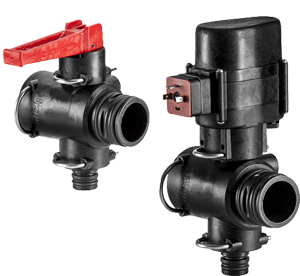

Boom Section Valves
Quick-Fit

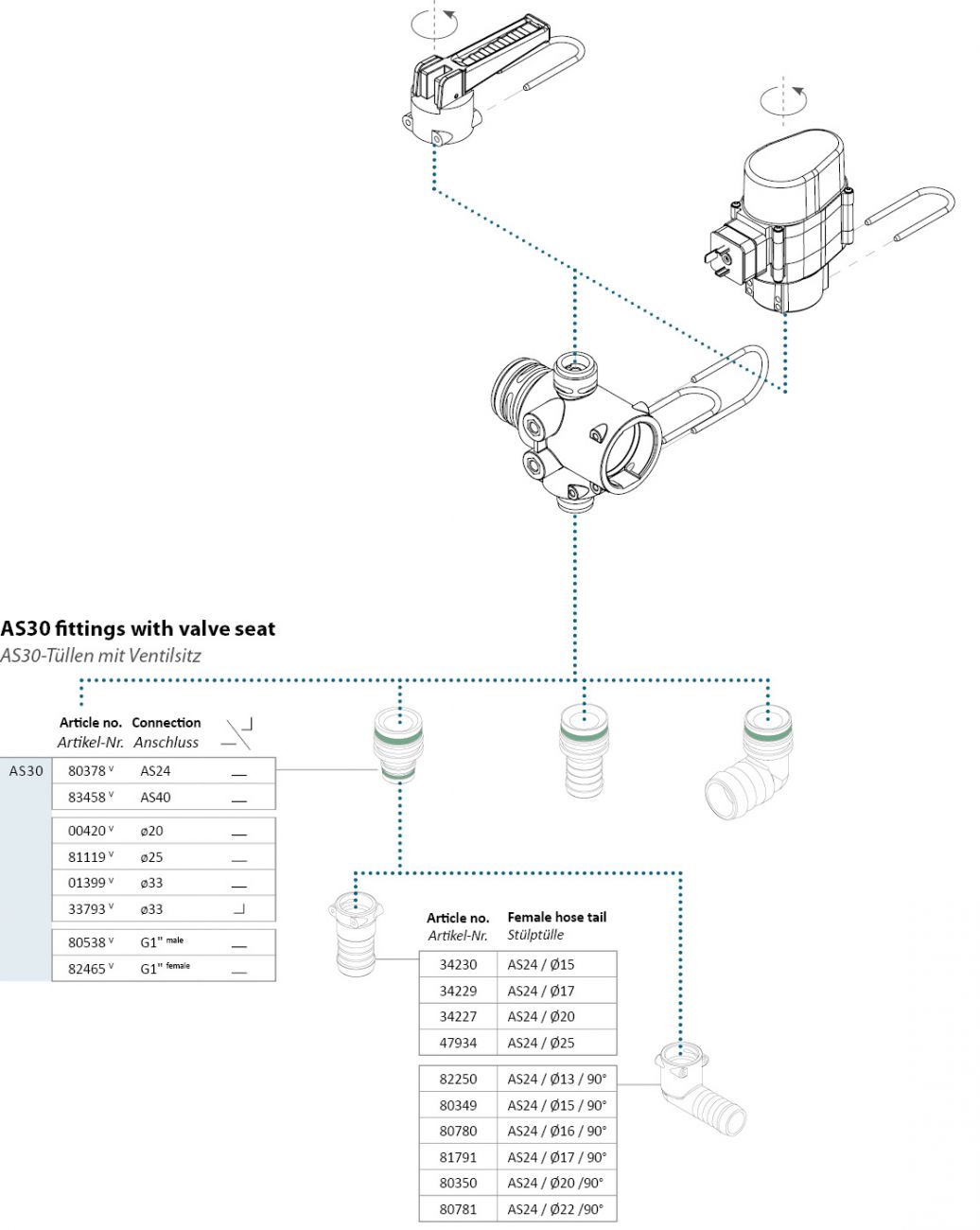

Overview

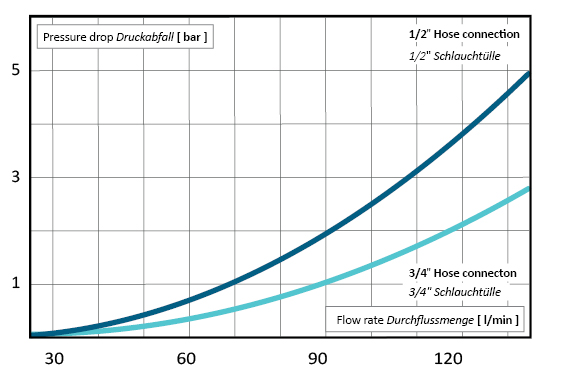

Diagram
Properties
| Maximum Pressure | 12 bar |
| Material | POM GF, stainless steel, FPM- und NBR-seals |
| Drive | manual 2-Wire 3-Wire (+) driven 3-Wire (–) driven |
- Quickest installation by using altek Male System (AS)
- Modular style
- High flow rates at low pressure drop
- For boom section hoses up to Ø32 mm

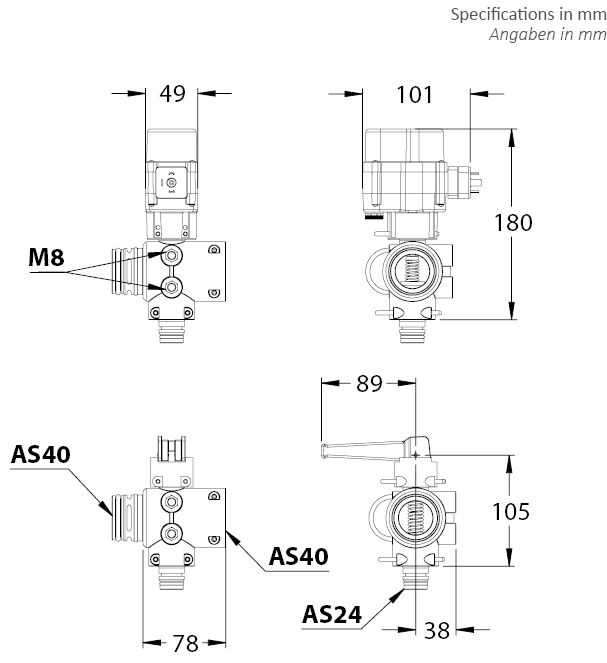

Dimensions

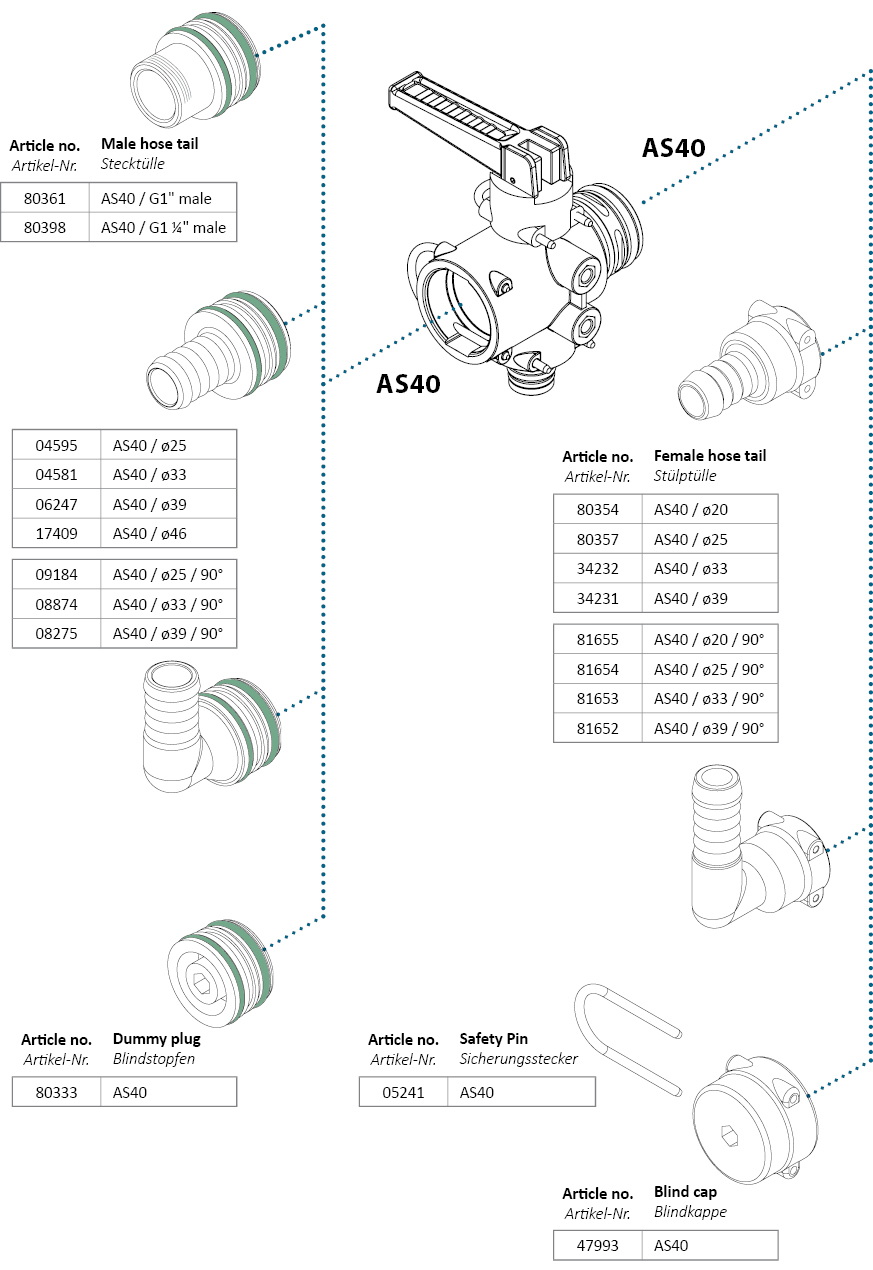

Fittings
