Shut-Off Valves

altek Modular System

As a leading expert in the field of sprayer altek is constantly using a modular assembly system. Furthermore altek is maintaining excellent relationships to sprayer manufacturers as well as to end users.

Both facts together enable us to design our different valve concepts according to the distinct needs and wants of our customers, what implies that retrofits to existing sprayers are technically feasible as well.altek´s philosophy of a modular assembly system in conjunction with high emphasis on system integration will be maintained in the future.

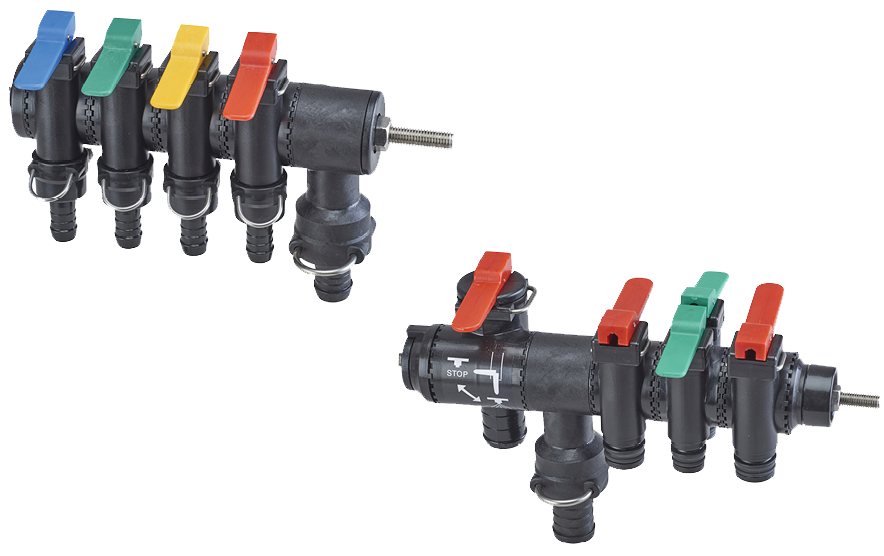

Since the very beginning altek is using the modular assembly system for its valves and regulators. This assures that all components in our regulator and valve system can be combined with each other. Thereby the main advantage of this system is its flexibility and adaptability to different individual requirements of our customers.

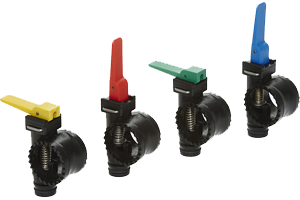

Other colours and/or orientations of the lever upon request!

Basic Parameters

Maximal Pressure 12 bar
Materials Stainless steel, POM GF, FPM- and NBR- seals

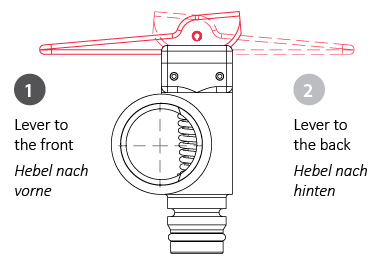

Lever Orientation

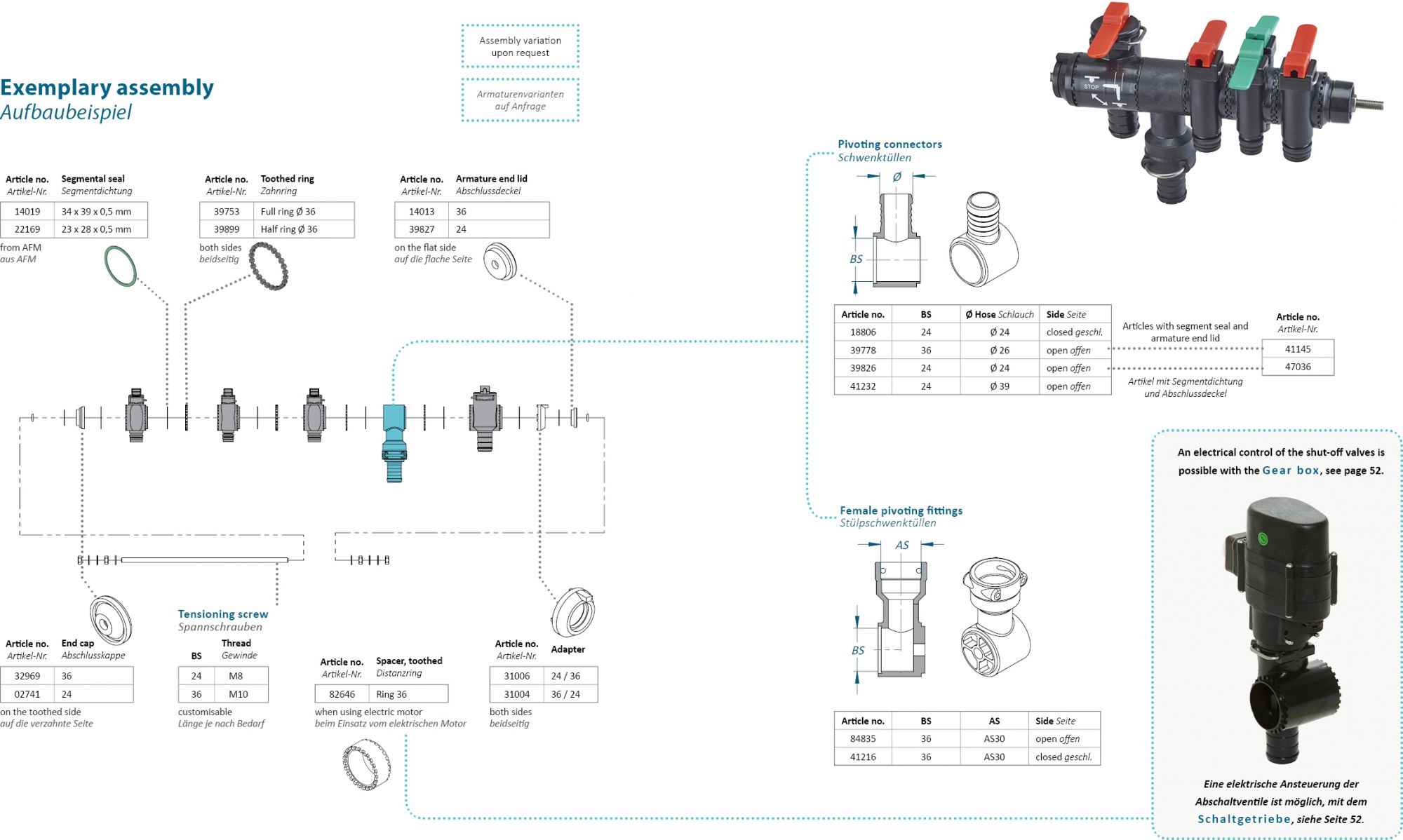

Exemplary assembly

An electrical control of the shut-off valves is possible with the Gear box, see Drive of Boom Section Valves.
